BarCode Batch Generator Std      download zip file          exe file

15 days free trial

$9.99 to buy

Pro version

To generate thousands of barcodes with one click, in minutes, supports Excel and Text file data import (with template provided).

It supports most popular barcode symbologies, can produce barcode Image of PNG, JPG, BMP, GIF, SVG, EPS, PCX.

It supports label printer, and A4 typesetting print with A4 printer, or generate A4 composed image, the size and appearance can be customized.



HOW TO

Size and pix adjustment

Preview

Save barcode image, print

Barcode title

Data text appearance

A4 typesetting

Small tag print setting

Batch generate or print

Save barcode images in single ones or A4 composed typesetting pictures - batch generate

License key and register

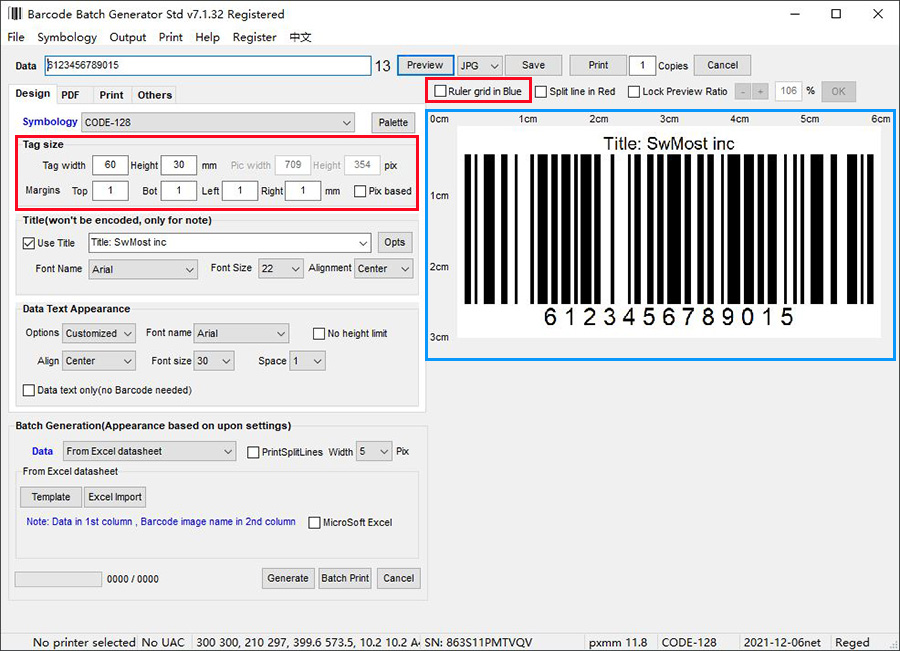

Tag size default unit is mm, DPI refer to "Printer and DPI" section. (what's DPI)

Check "Pix based" can switch to Pix based setting, after uncheck "print" checkbox in Print tab,

You can check "Ruler grid Blue" box to show ruler grid in cm.

Margins unit in mm, normally the margin value limit is 25% of whole size. Check "No height limit" can release the limit.

Click "Preview" button after changes.

Top

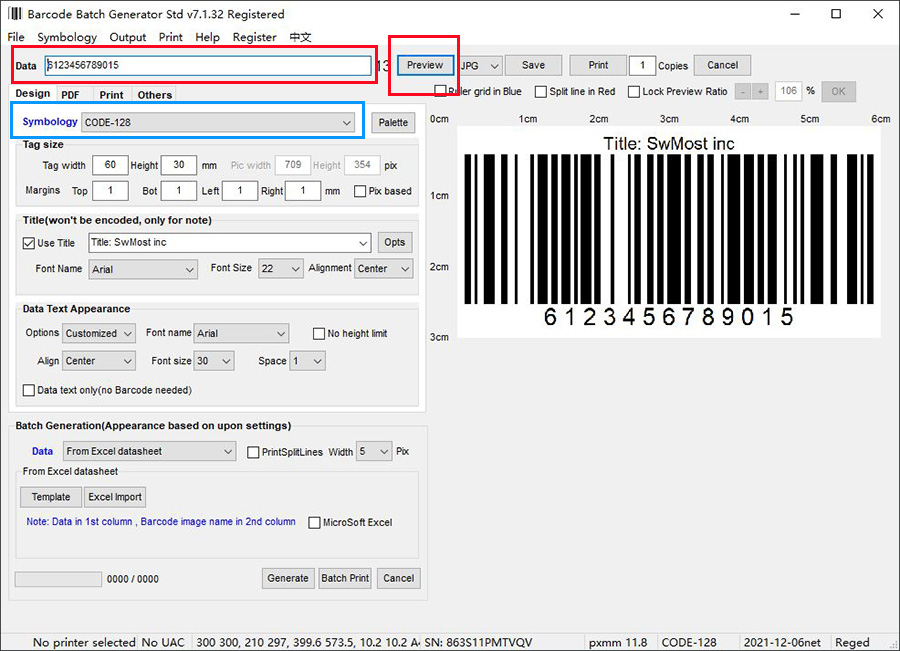

Select "Symbology" - CODE-128 for example.

Input "Data" text

Click "Preview", you get the barcode image.

Top

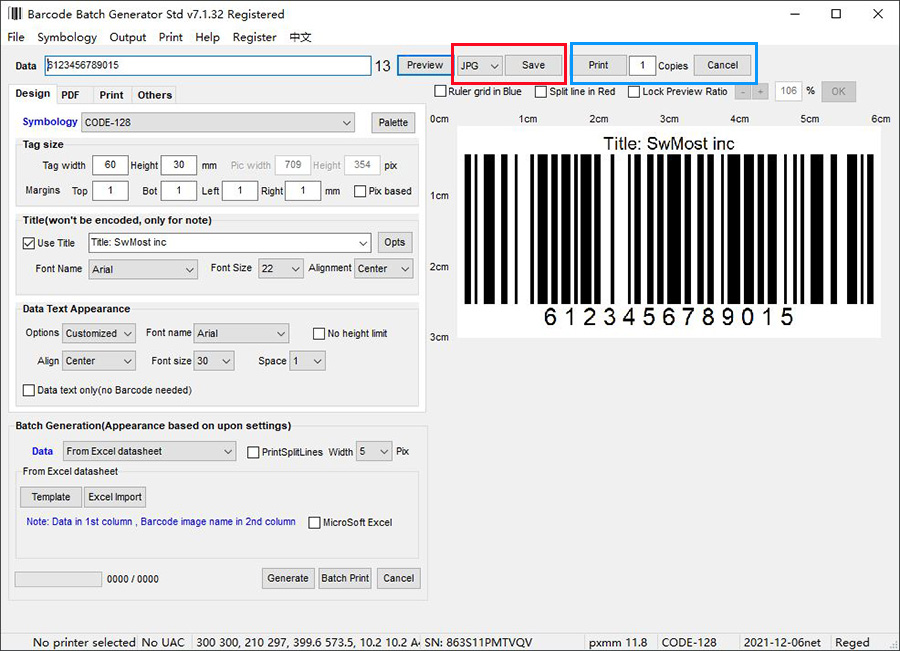

Select image format (JPG, PNG...), then click "Save" button to save barcode image.

Input copies, click "Print" button to print. Please select printer and paper type before printing.

Top

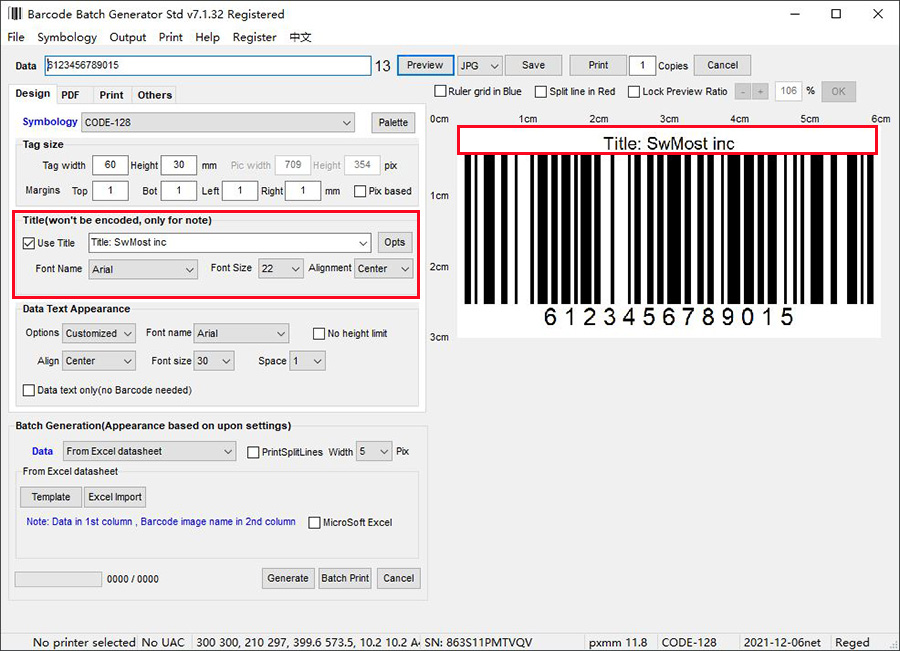

Title can be added as note, but title text can not be encoded in barcode image.

Top

Data text appearance could be customized, or hide the data text.

If "No height limit" checked here, will release limit of margins (top,bot,left,right) in tag size tab.

Top

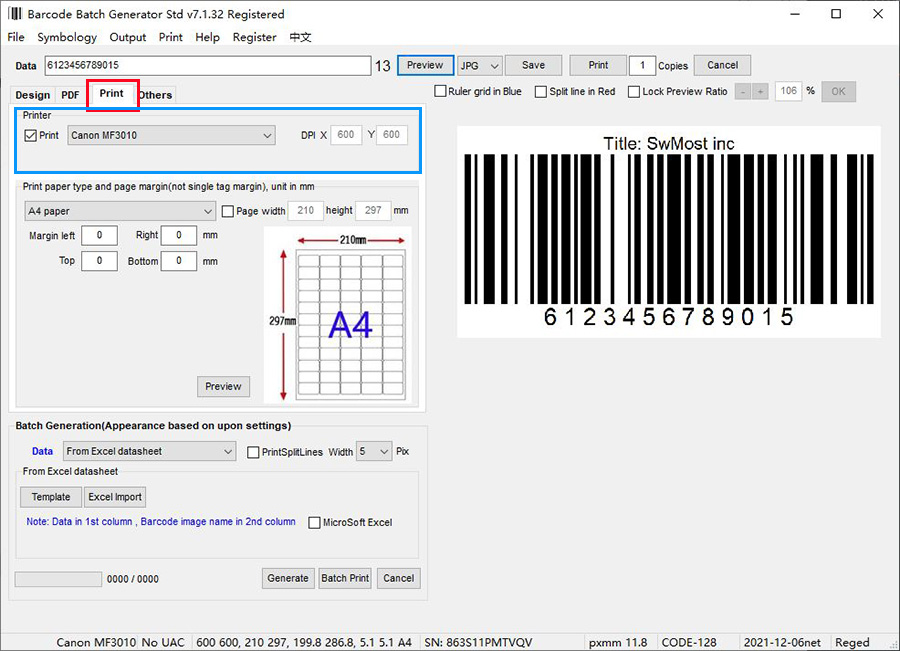

Printer and DPI:

Check "Print" box, select printer from the list. DPI will be the printers' property, you can't edit.

Uncheck "Print" box, you can edit DPI.

DPI here is used for pix and mm conversion, for the tag size setting.

Top

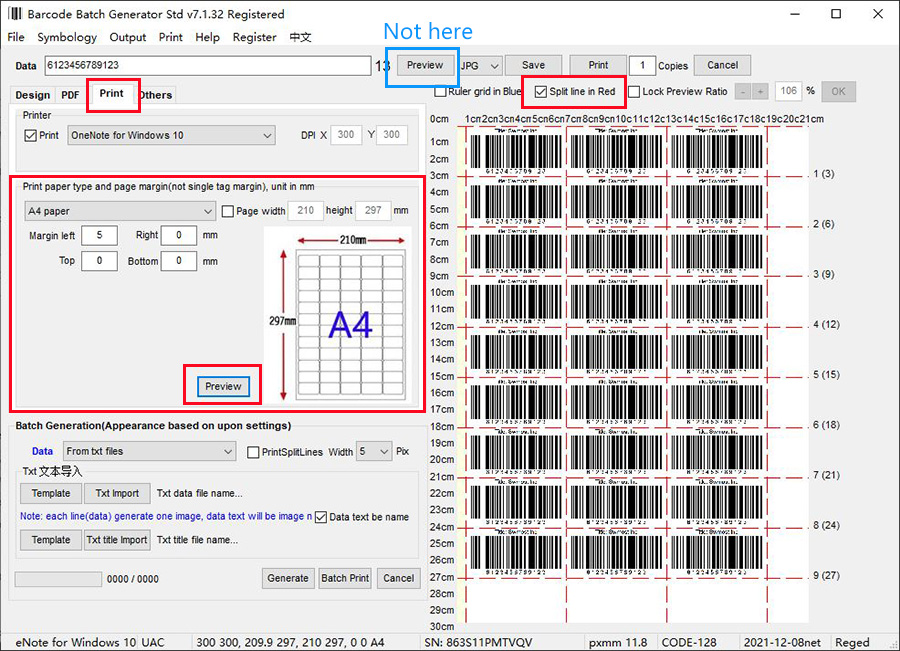

A4 typesetting

Select A4 paper (check "Page width" box, can modify the paper size, to customize the size, not only A4).

Margin here is for A4 paper, different from the margins for Tag size.

Click "Preview" button to get the view of whole A4. (please note, not the "Preview" button in blue frame).

Check/uncheck "Split line in Red" box, to show/hide the red split grid lines. Be noted these lines are for preview only, need to check the "PrintSplitLines" box to print lines.

Top

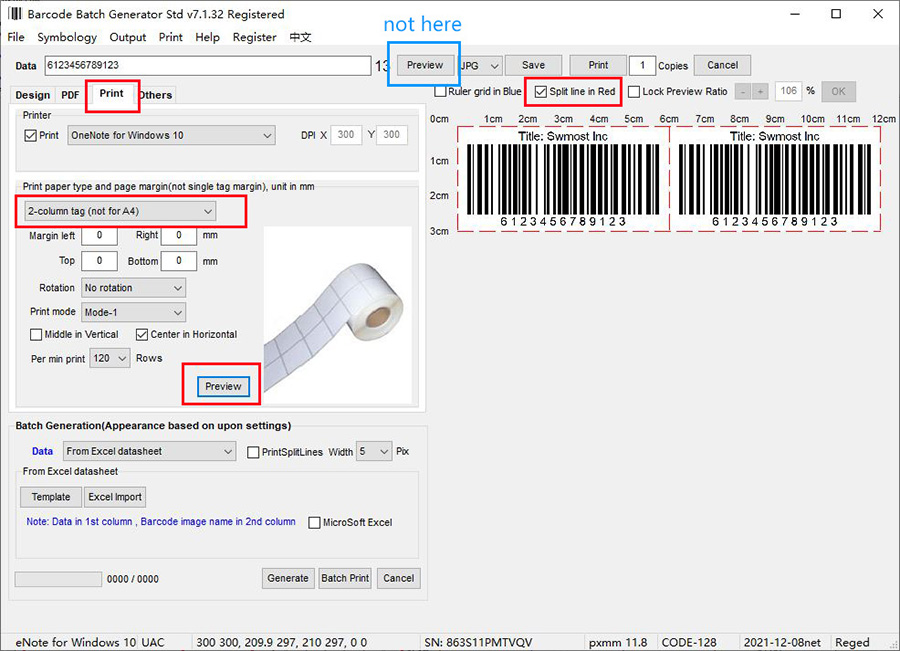

Small tag print setting

Select tag paper, 2-column tag selected here for example.

Margin here is for tag paper, different from the margins for Tag size.

Click "Preview" button to get the view of tags. (please note, not the "Preview" button in blue frame).

Check/uncheck "Split line in Red" box, to show/hide the red split grid lines. Be noted these lines are for preview only, need to check the "PrintSplitLines" box to print lines.

Top

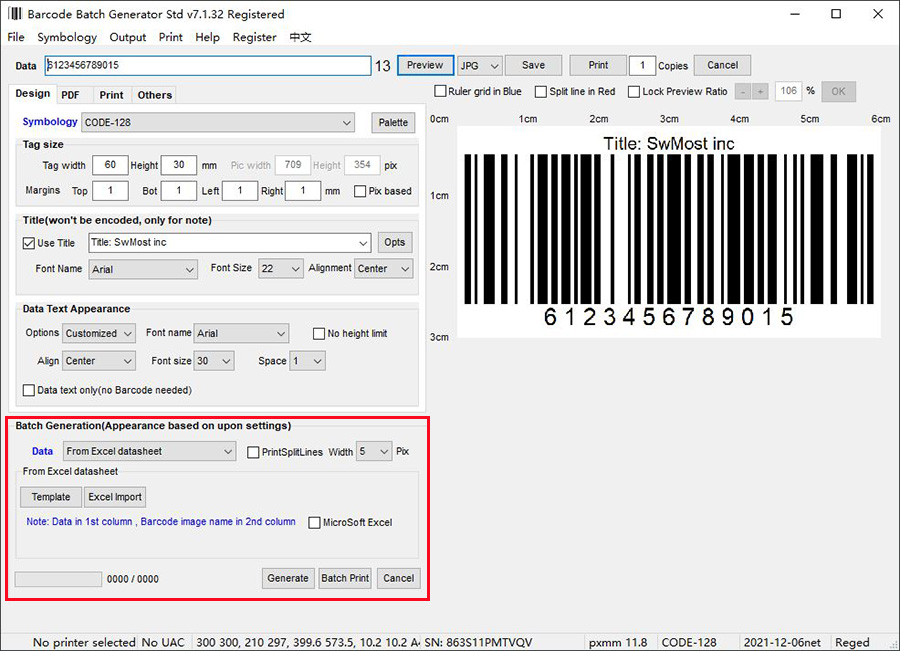

Batch generate or print, the barcode appearance will follow the upon settings.

"Data" can from Excel file, Text file, or auto-increment (text number), Excel or text file should follow the template, click "template" button can open the template.

After get the data ready, click "Excel import" button to select you datasheet, or click "Txt import" to select you text file.

If "PrintSplitLines" checked, split lines will be printed for A4 typesetting, or multi-column tags, lines also show up in images saved.

"Microsoft excel" should be checked if you use Microsoft office (not WPS), restart this software after check/uncheck the box.

Click "Generate" button to save images, click "Batch Print" button to print all barcodes from your data file.

Top

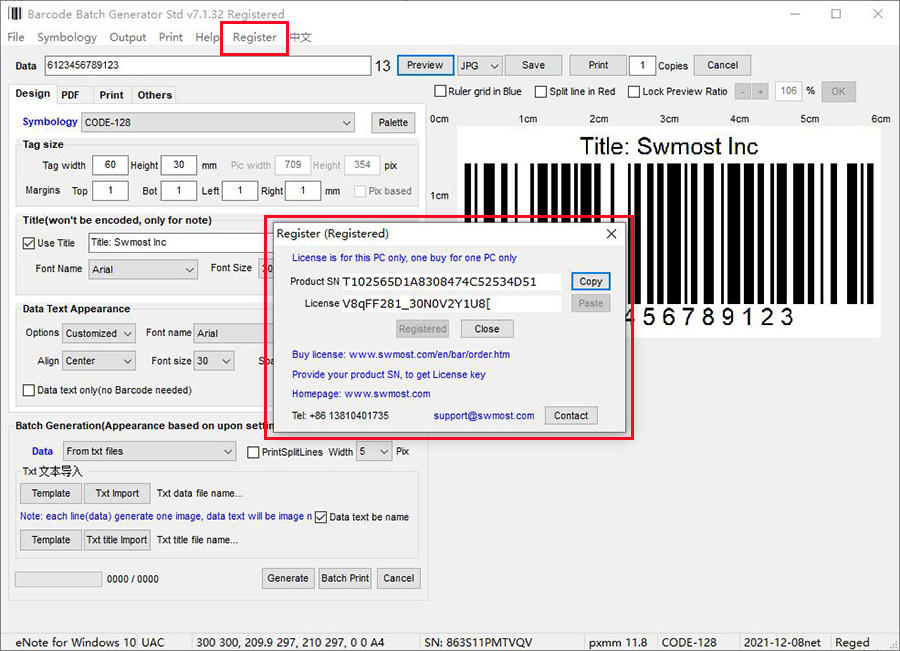

License key and register

Please provide the "Product SN" to get the license key, when you purchase it.

Once bought and registered, the license won't be expired for the PC, please note one license key for only one PC.

Free load upgrade will be reminded once new version is available.

Top

Save QR images in single ones or A4 composed typesetting pictures - while batch generate

If select A4 paper, the images will be composed typesetting pictures when batch generating;

If select none-A4 paper, the images will be single ones when batch generating.
